This plugin enhances your ability to design 3D cable tray systems within your existing projects, enabling you to simulate designs, assess route optimizations, generate precise isometric drawings, and provide immersive virtual tours to clients. It supports four tray categories: Ladder, Solid, Ventilated, and Wire Mesh (Wire Basket), each equipped with 13 essential components. These components are fully parametric, allowing real-time adjustments to their geometry to perfectly align with your project requirements.
In the dynamic industrial landscape, the efficient management of power, control, and communication cables is a critical aspect of infrastructure development and maintenance. Cable trays are the backbone for organizing and routing these vital systems, ensuring their accessibility, safety, and long-term reliability.
Often, a need arises to simulate the cable tray route in a 3D model space before its installation in the field. This process allows industry professionals to visualize the proposed layout, verify potential system clashes or overlaps, and produce detailed isometric drawings for the fabrication and installation stages.
Parametric Cable Tray Plugin is a comprehensive solution designed to elevate the cable tray planning and visualization process. Developed by industry experts with a deep understanding of the unique challenges faced by engineering and construction teams, this application offers a powerful and user-friendly platform for optimizing cable tray routing and management.
With this plugin, users can seamlessly create 3D models of their cable tray layouts, leveraging a comprehensive library of components and accessories to ensure accurate representation, while the isometric drawing generation feature streamlines the documentation and fabrication processes.
This product is compatible with version 2022, 2023, 2024, and 2025
Effortlessly design complex cable tray routing in a user-friendly environment
Smooth, self-guided installation and uninstallation
Automatic detection of your Autodesk AutoCAD Plant 3D version and tailored installation options
Python-based parametric tray components that can be easily customized in the model space to fit your project requirements
Components meticulously engineered to industry standards (IEEE-422, IEEE-628, IEC-61537, NEMA-V1)
Versatile tray component customization to suit your project needs
One-click isometric generation

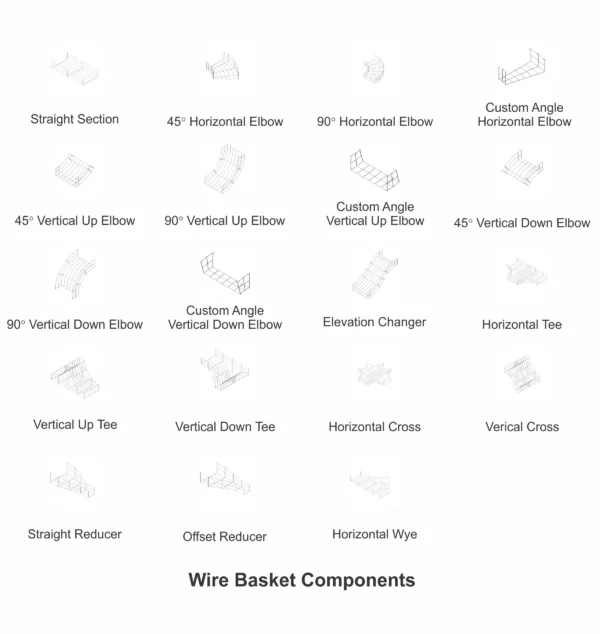

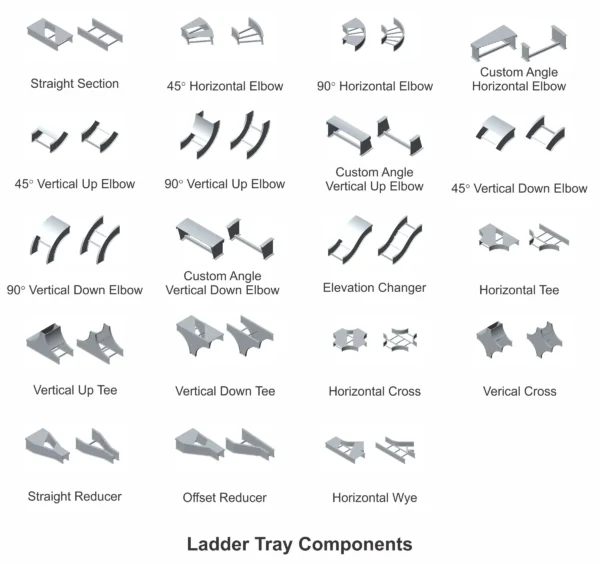

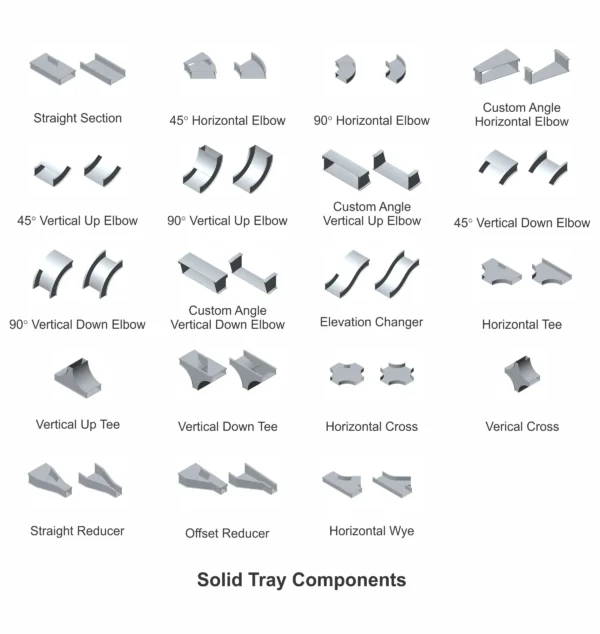

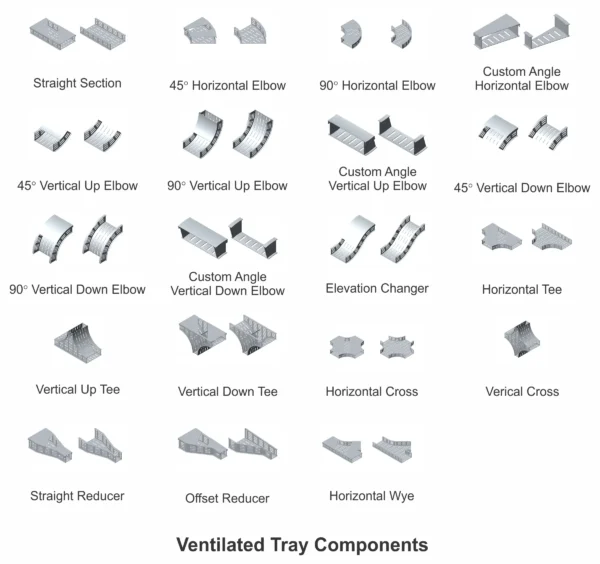

Choice from four leading industrial tray categories (i.e. Ladder, Ventilated, Solid, and Wire Basket) with an additional choice of cover placement
Support for both Imperial and Metric unit systems
Rich components catalog populated with the most commonly used industrial tray parts designed from 16 basic component types
Tailored specification sheets in four tray categories with frequently used tray dimensions with the flexibility to modify as per project needs
Comprehensive instructions and guidelines for user
Low cost, rich content, and user-friendly.
We have designed this product purchase system to ensure you stay in sync with our product updates on the Autodesk App Store. This payment gateway offers an alternative purchasing method for customers who are unable to use PayPal, the standard payment platform on Autodesk. It is essential that your purchase here is also synchronized with your account on the Autodesk App Store.
To achieve this, please follow these instructions precisely:
If you don’t already have an account on the Autodesk App Store, please create a new account
If you have no history of app downloads on the Autodesk App Store (paid or free), we will be unable to synchronize your purchase with the App Store. Don’t worry, the process is simple and quick. You just need to log in to your account and download any product that you like. It doesn’t matter which one you choose, but we recommend selecting one of the free apps so it won’t cost you anything. Once you click on download, Autodesk will display a pop-up message with the End-User License Agreement (EULA). Please read and accept this agreement. This process enrolls your account into Autodesk’s trusted client list, allowing us to bind your purchase on our site to the Autodesk App Store database. The video below shows this process for your reference.
When you make a purchase on our site, please provide your verified Autodesk Account ID as mentioned above. You can leave it in the order notes on our checkout page. This is required to bind your purchase with Autodesk.
After successful binding, you will receive an email from Autodesk (sent to the account you registered) confirming your download entitlement for our app. You can then visit the store page and see the download button enabled for you.

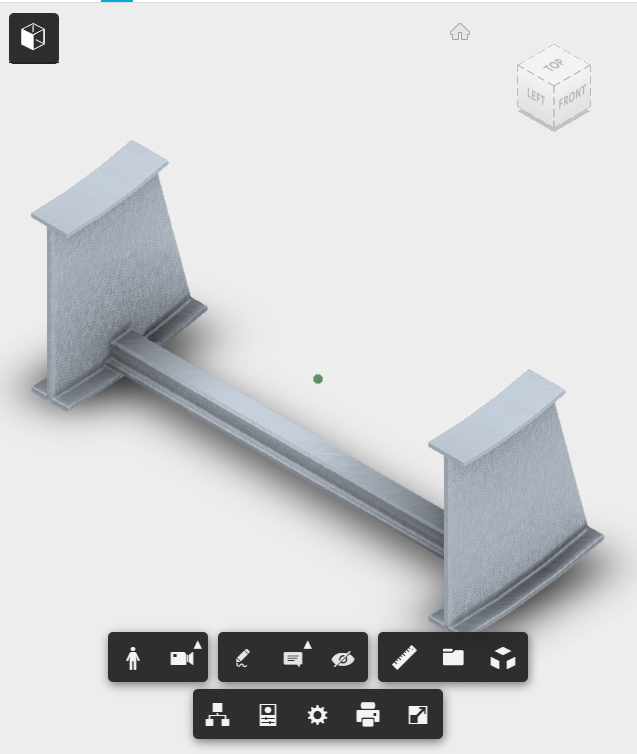

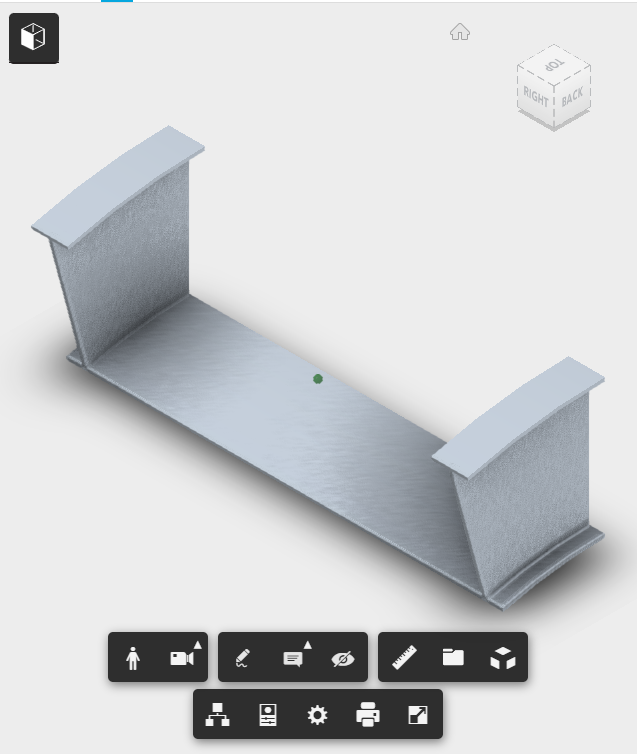

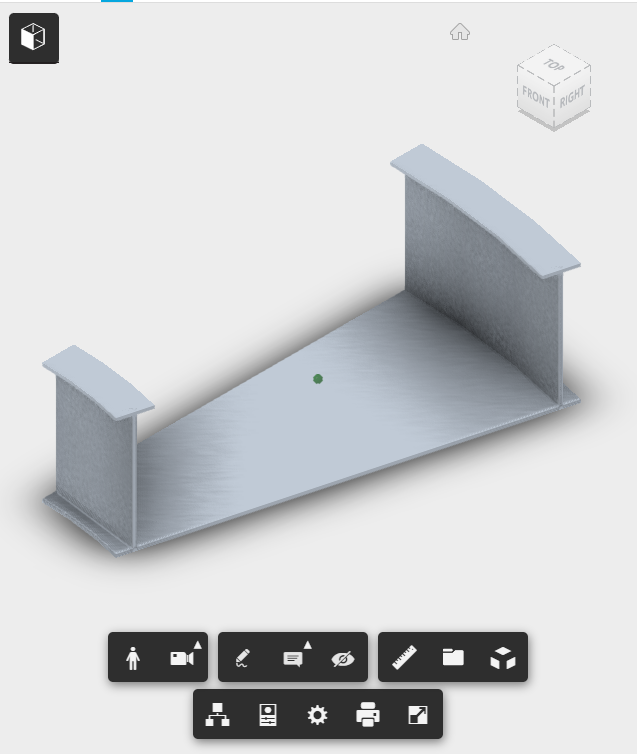

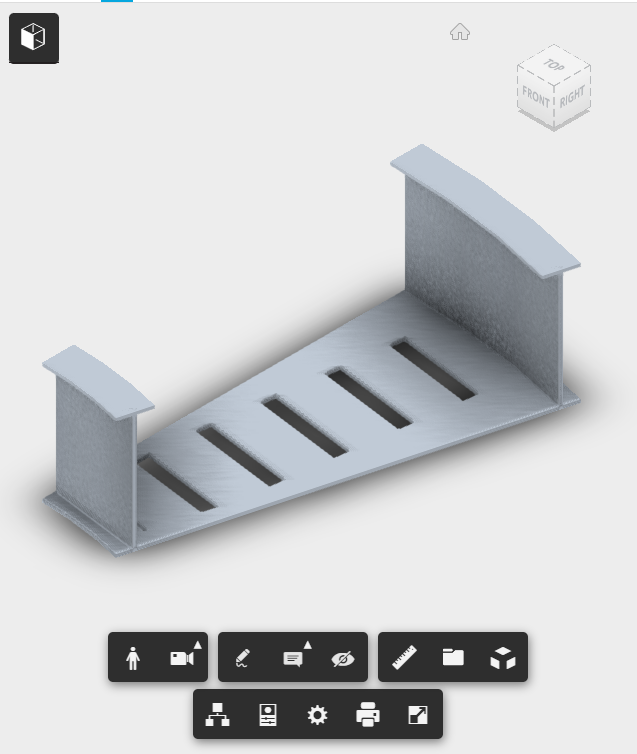

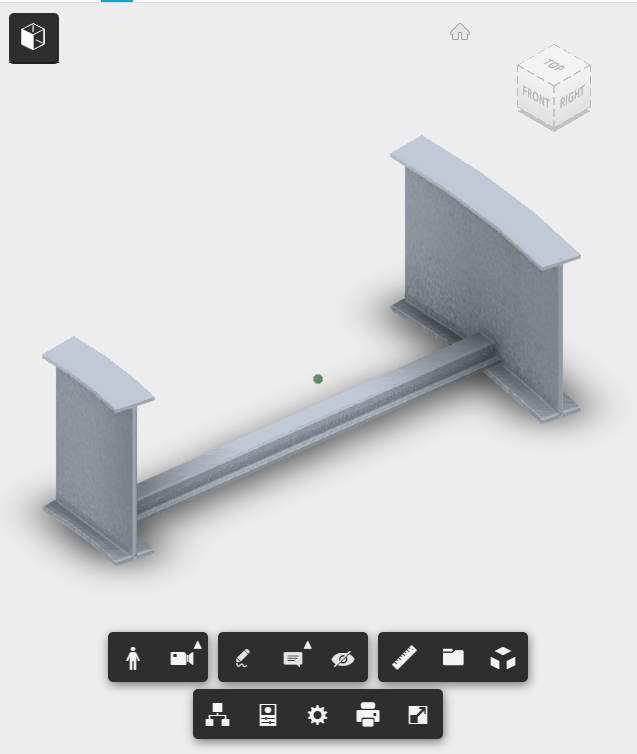

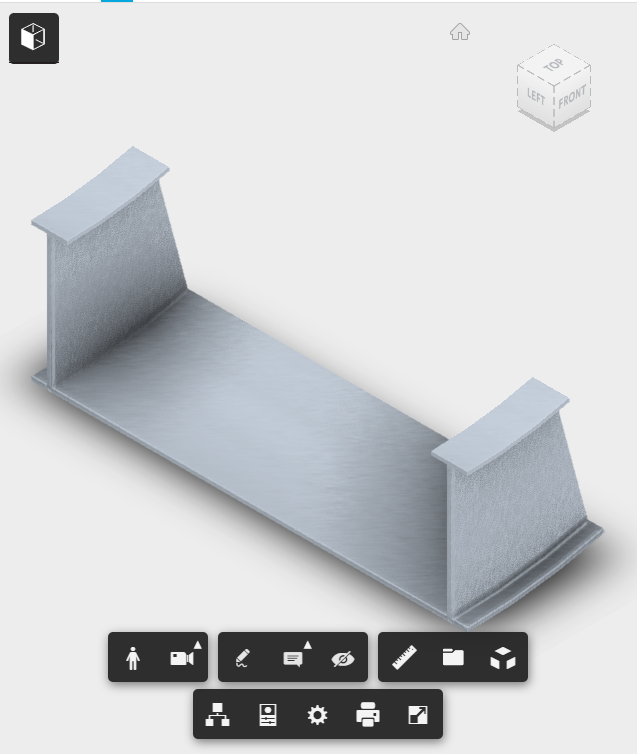

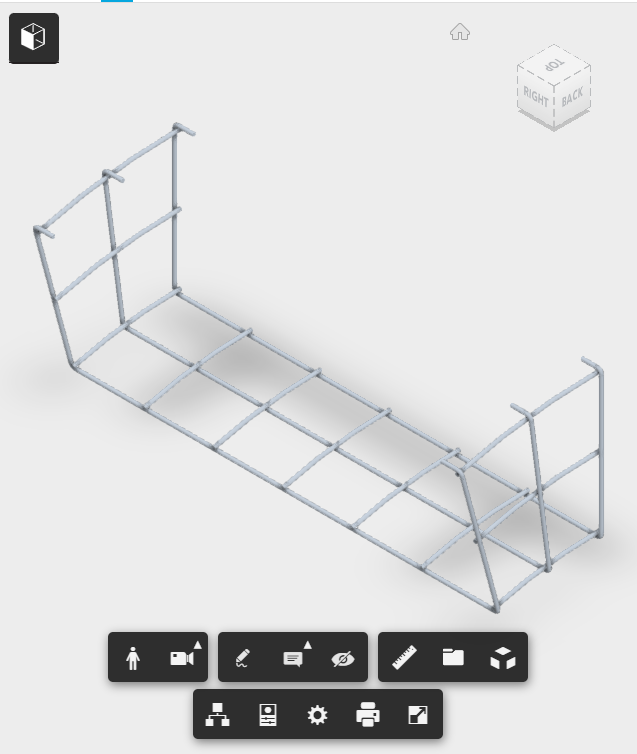

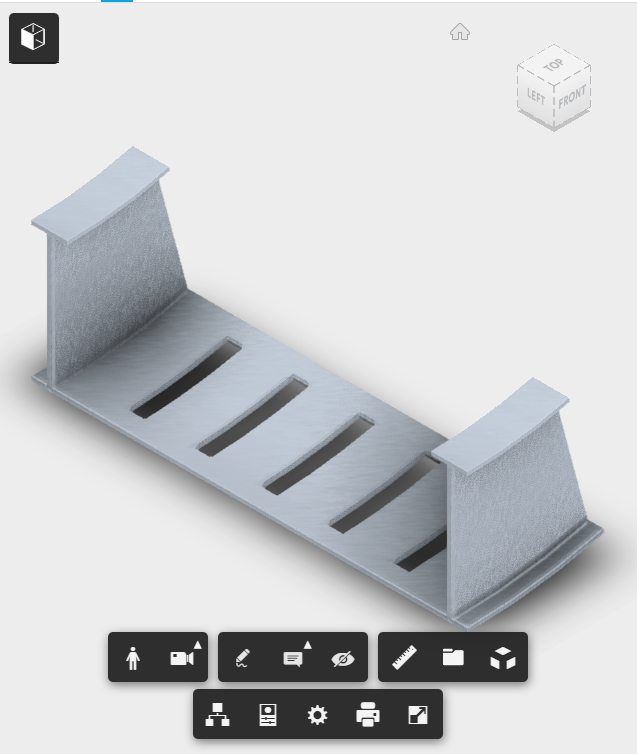

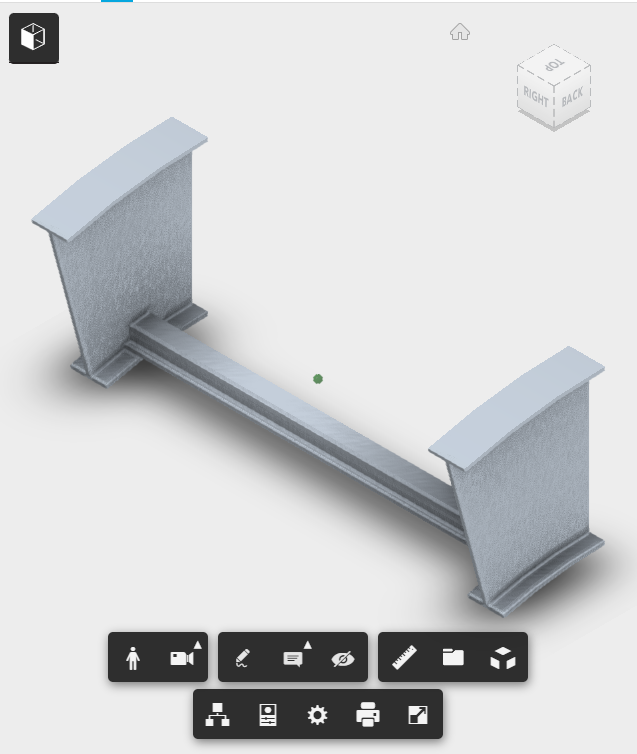

Click on the image to view Interactive 3D Model
