Parametric Cable Tray Support Plugin

Designing and placing suitable supports is essential to working with cable trays. Imagine having a program that allows you to visualize tray supports before drafting the design or sending a manufacturing order. Such a tool can offer invaluable insights, enabling adjustments to be made while viewing the project in the context of the entire plant. Design decisions can be made confidently and precisely by visualizing potential clashes, estimating support spans, and figuring out installation requirements (such as whether it should be wall-mounted or ceiling-hanged).

The Parametric Cable Tray Supports Plugin by Mirza Solutions is developed with this vision in mind. Enhanced through the power of Python coding, this plugin offers extraordinary customization while seamlessly integrating with the inherent features of AutoCAD Plant 3D. It respects your system’s settings, ensuring no disruptions to your existing configurations, and provides an intuitive and efficient way to revolutionize your design work.

This product is compatible with version 2022, 2023, 2024, and 2025

Easy and user-friendly environment
Streamlined and guided installation/uninstallation process
Autodetection of installed versions(s) of AutoCAD Plant 3D and providing choice during installation

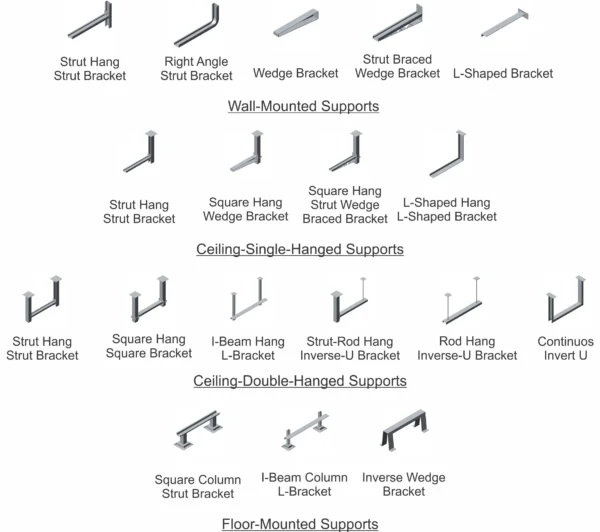

A comprehensive library of the most commonly used supports

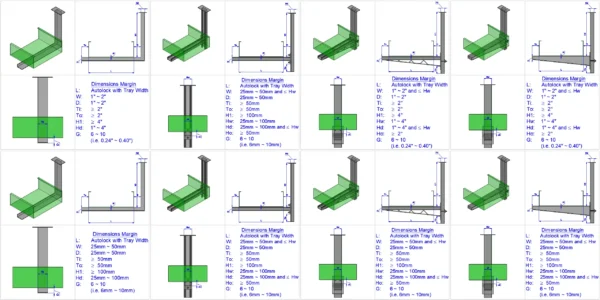

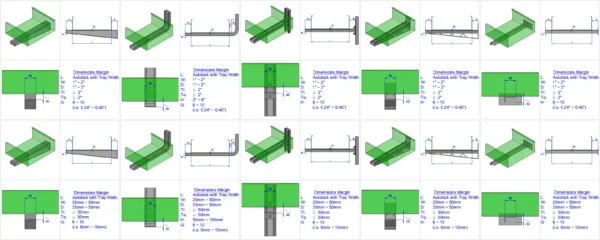

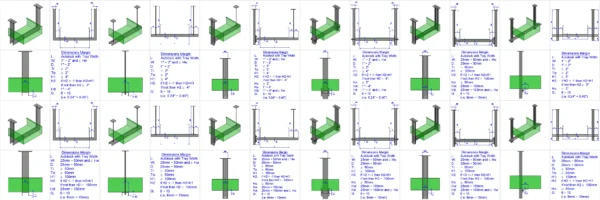

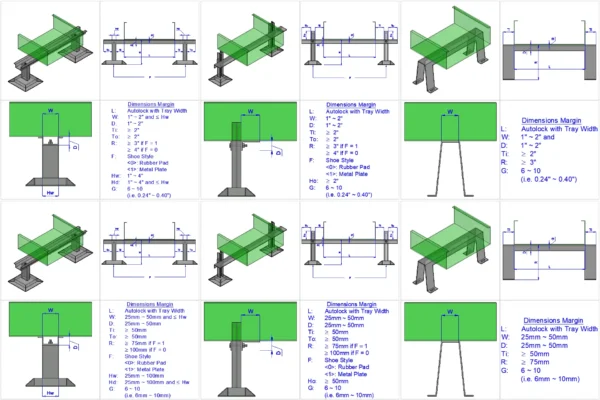

The library contains all three categories of tray supports i.e. wall-mounted, ceiling-hanged (single and double hang), and floor-installed
Provides a cohesive solution paired with a Parametric Cable Tray Plugin
Fully customizable geometry to meet most needed tray support design
Fully compatible with AutoCAD Isometric generation
Adherence to prevailing industrial standards i.e. IEEE-422, IEEE-628, IEC-61537 and NEMA-VE1
Designed for both Imperial and Metric systems of units
Access to component catalog for creating on-the-run pre-customized support sizes
Pre-loaded specification sheet with support sizes auto-matched with Parametric Cable Tray Plugin sizes
Detailed user manual
Low-cost, rich-content, and user-friendly
