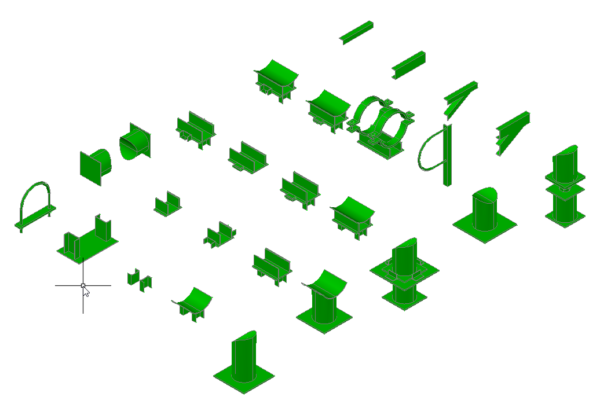

The Parametric Piping Supports Plugin extends AutoCAD Plant 3D with a comprehensive library of 37 parametric piping support types designed for real-world industrial applications. Built around ASTM-based designs and Python-powered parametric modeling, it enables engineers to quickly place, auto-snap, and customize supports while remaining fully integrated with Plant 3D’s native workflows, resulting in faster modeling, greater flexibility, and more consistent, standards-compliant piping designs.
The Parametric Piping Supports Plugin by Mirza Solutions has been developed in response to valuable user feedback and real-world engineering requirements. While the native AutoCAD Plant 3D support library provides a range of standard support types, industrial projects frequently require additional, specialized, and application-specific support configurations that extend beyond the default catalog. This plugin bridges that gap by introducing an extensive collection of practical support designs tailored to modern industrial piping systems.
The support geometries are developed in accordance with relevant ASTM standards and established industry practices. Powered by Python-based parametric modeling, each support can be intelligently adjusted to accommodate varying pipe sizes, elevations, and project-specific design requirements, providing engineers with the flexibility needed for efficient plant design.
Designed to integrate seamlessly with AutoCAD Plant 3D, the plugin preserves the application’s native workflows, specifications, and project settings while extending its support capabilities. Engineers can rapidly place and customize piping supports without disrupting their existing design process, resulting in improved productivity, greater modeling accuracy, and more consistent project deliverables.
With the Parametric Piping Supports Plugin, Mirza Solutions delivers a powerful extension that enhances piping support design, improves model visualization, reduces repetitive modeling effort, and helps engineers produce standards-compliant piping systems with confidence, within the familiar AutoCAD Plant 3D environment.
Version 1.0.0
First release of the plugin
Includes thirty-seven (37) types of piping supports
Available for the Metric System of units
Version 1.1.0
Additional Supports have been included in the Catalog
Stretch Anchors on MSPS05A were misbehaving, which has now been fixed
Trunnion Pipe Diameter for some DN was wrong, which is now fixed
Clamp size on SP22B, SP23B, and SP26B was wrong, which is now fixed
Provision to toggle the bottom plate on SP02 has been added
Symmetrical Stretch has been replaced with independent stretch on both sides of the pipe for Channel and Beam type Supports
Imperial Unit Systems catalog has been included
This product is compatible with versions 2022, 2023, 2024, 2025, 2026, and 2027
42 fully parametric piping support types included in the initial release.
Seamless integration with AutoCAD Plant 3D native workflows and specifications.
Automatic pipe snapping with intelligent support size selection from the catalog.
Python-powered parametric modeling for flexible and intelligent support generation.
Interactive grip editing with stretch handles for rapid geometry modification.
Property Palette parameter editing for precise dimensional control.
Designed in accordance with ASTM standards and established industrial practices.
Wide pipe size coverage from DN 15 to DN 1250 (depending on support type).
Supports multiple industrial configurations, including U-bolts, shoes, guides, stoppers, trunnions, cantilevers, clamps, pick-up supports, and more.
Customizable catalogs and specification sheets for project-specific requirements.
Automatic adaptation to varying pipe diameters and elevations.
Fully integrated with Plant 3D specifications, preserving existing project workflows.
Reduces repetitive modeling effort while improving consistency and productivity.
Designed for real-world industrial piping applications, beyond the default Plant 3D support library.
Metric unit support.
